Main Characteristic of RV Series Worm Gearbox
RV series worm gear reducer is a new-generation product developed by Aokman on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad.
1. High-quality aluminum alloy, light in weight and non-rusting.
2. Large in output torque.
3. Smooth running and low noise,durable in dreadful conditions.
4. High radiation efficiency.
5. Good-looking appearance, durable in service life and small volume.
6. Suitable for omnibearing installation.
Main Materials of RV Series Worm Gearbox
1. Housing: die-cast aluminum alloy(frame size: 025 to 090), cast iron(frame size: 110 to 150).
2. Worm: 20Crm, carbonization quencher heat treatment makes the surface hardness of worm gears up to 56-62 HRX, retain carbonization layer's thickness between 0.3 and 0.5mm after precise grinding.
3. Worm Wheel: wearable stannum bronze alloy.
SPEED RATIO7.5~100
OUTPUT TORQUE<1050NM
IN POWER0.09-11KW
MOUNTING TYPEFOOT-MOUNTED FLANGE-MOUNTED

When working, great load capacity, stable running, low noise with  high efficiency.
  Gear Box's Usage Field
1Metallurgy   11Agitator
2Mine   12Rotary weeder
3Machine   13Metallurgy
4Energy   14Compressor
5Transmission  15Petroleum industry
6Water Conserbancy  16Air Compressor
7Tomacco   17Crusher
8Medical   18Materials
9Packing  19Electronics
10Chemical industry  20Textile indutry
...    ...
Power0.06kw0.09kw0.12kw0.18kw0.25kw0.37kw0.55kw
0.75kw1.1kw1.5kw2.2kw3kw4kw5.5kw
7.5kw11kw15kw
Torque2.6N.m-3000N.m
Ratio7.5-100, the double gearbox is  more
ColorBlue, Silver or as customers' need
MaterialIron or Aluminium
PackingCarton with Plywood  Case or as clients' requirement
TypeRV025RV030RV040RV050RV063RV075RV090
Weight0.7kg1.3kg2.3kg3.5kg6.2kg9kg13kg
TypeRV110RV130RV150
Weight35kg60kg84kg
Mounting MethodsFoot Installation Flange Installation
For various  mortor or double input/output shafts can be equipped

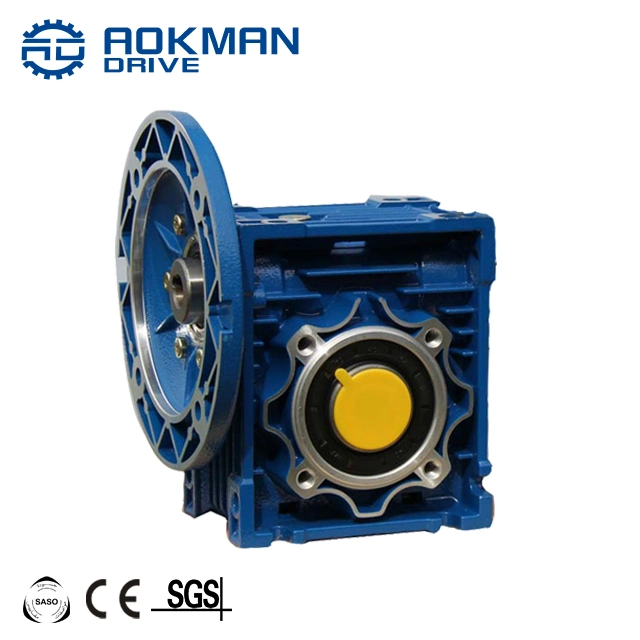

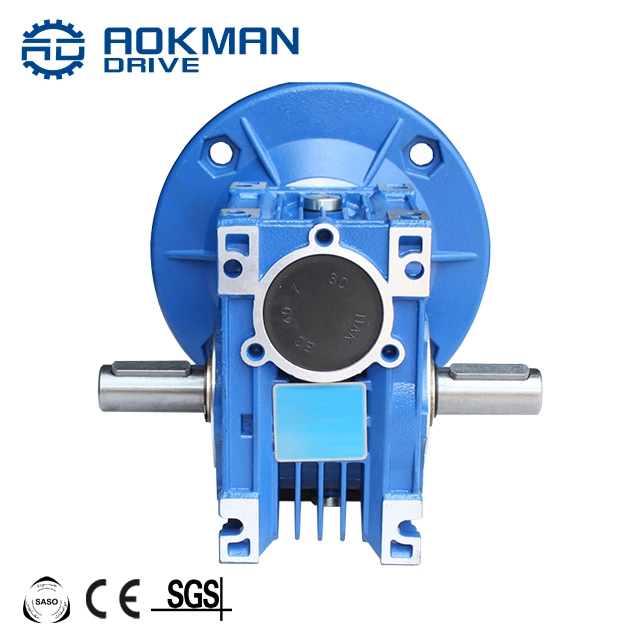

Product picture:
Top Quality Chain Drive Reduction Worm Gear Box (L)
Top Quality Chain Drive Reduction Worm Gear Box (L)
Top Quality Chain Drive Reduction Worm Gear Box (L)



Top Quality Chain Drive Reduction Worm Gear Box (L)
Structure:
Top Quality Chain Drive Reduction Worm Gear Box (L)

Certificate:
Top Quality Chain Drive Reduction Worm Gear Box (L)

Packing & Delivery:
Top Quality Chain Drive Reduction Worm Gear Box (L)

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
Top Quality Chain Drive Reduction Worm Gear Box (L)

Customer visiting:
Top Quality Chain Drive Reduction Worm Gear Box (L)
FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
