Direct Factory Spiral Vane Aluminum Solid Rigid Centralizers for Cast Aluminum Centralizers

Aluminium-Alloy CentralizerThe centralizer are made of high strength, corrosion resistant cast aluminum. They can be used with corrosion resistant alloy casing strings to avoid the effects of galvanic corrosion. Their spiral blades increase annular turbulence to improve well bore clean out. It is developed specially for horizont

Featured Products

Aluminium-Alloy Centralizer
The centralizer are made of high strength, corrosion resistant cast aluminum. They can be used with corrosion resistant alloy casing strings to avoid the effects of galvanic corrosion. Their spiral blades increase annular turbulence to improve well bore clean out. It is developed specially for horizontal and extended reach wells with lower coefficient of friction over steel centralizers.
Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer
Property Parameter
SpecificationCasing size (mm)Hole Size (mm)Inner Diameter (mm)Outer Diameter (mm)
4-1/2″×6″114152118152
5″×6-1/2″127165132165
5-1/2″×6-1/2″140165142165
5-1/2″×8-1/2″140216142218
6-5/8″×8-1/2″168216172218
7″×8-1/2″178216182218
7″×9-1/2″178241182243
7-5/8"×9-1/2"194241198243
7-5/8″x9-7/8″"194251198253
9-5/8″×12-1/4″244311249311
10-3/4"× 12-1/4"273311278311
12 3/4"×17-1/2"324445328445
13-3/8″×17-1/2″340445344445
14-3/8"×18-3/4"365476369476
16"×20"406508410508
18-5/8"×24"473610474610
20"×26"508660512660

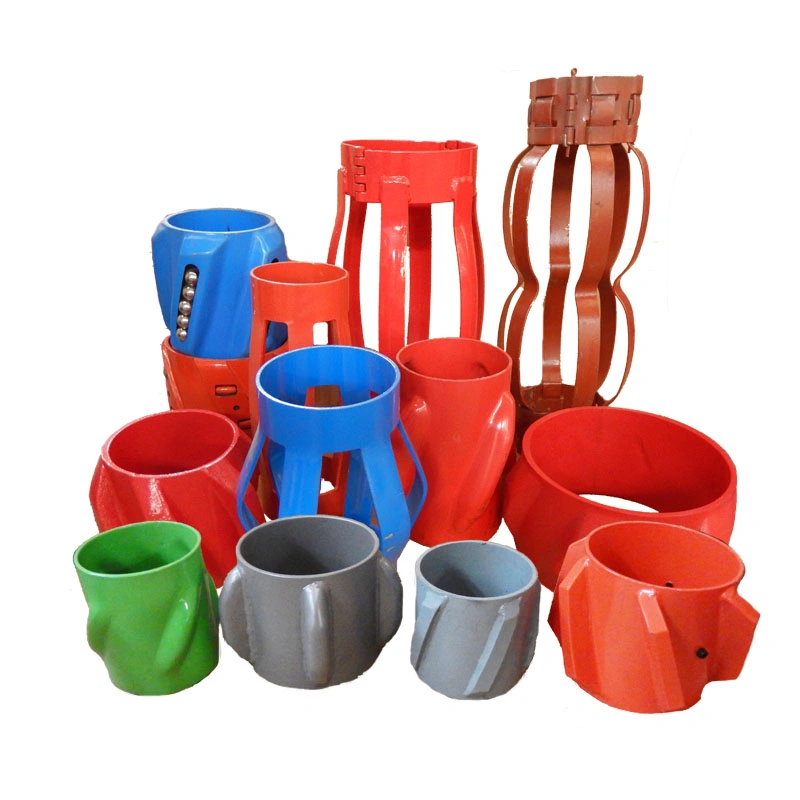

Related products
1.Integral Centralizer
2.Non- welded Bow Spring Centralizer/Non- welded semi rigid Centralizer
3.Welded Bow Spring Centralizers
4.Rigid Positive Centralizer/Turbolizer Centralizer/Drill Pipe Centralizer/Roller Centralizer ,etc
5.stop collars



Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer
Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer


Packing and shippment

Wood Carton or customized.

Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer

Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer


Company Information

Shijiazhuang Dibo Petroleum Machinery Co.,Ltd was established in 2015 focusing in the oilfield cementing casing centralizers' design and production in Shijiazhuang City. Hebei Province .China.
We have passed API 10D, ISO9001 International Quality System,GB/T24001 Environment Management System & GB/T28001 Occupational Healthy Safety Management
To guarantee new products R&D,  we adopt CAD. UG design and modular design to shorten products developing circle. With  electronic universal testing machine. hardmeter and automatic impact testing machine we could control quality of the raw material and finished products properly.
Our vision is to provide high quality and effective solutions for downhole operations in oilfields.
Our products have been sold to major domestic oil fields, as well as the United States, Canada, Russia, Mexico, Argentina and other overseas countries.
Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer
Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer


Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer

Direct Factory Spiral Vane Aluminum Solid Body Rigid Centralizer for Cast Aluminum Centralizer

FAQ:


Q1: Are you manufacturer & exporter?
A1: Yes, we are manufacturer & exporter.

Q2: What is your Core Products?
A2: Our Main Product is casing centralizer

Q3: How long is your delivery time?
A3: 15 days to 20 days for normal order, Delivery time depends on order Qty.

Q4: free of cost sample?
A4: Samples are for free. Postage should be paid by customer.

Q5:Do you accept custom products?
A5:Yes, we can make it according to the size of the paper you provide
